Introduction:

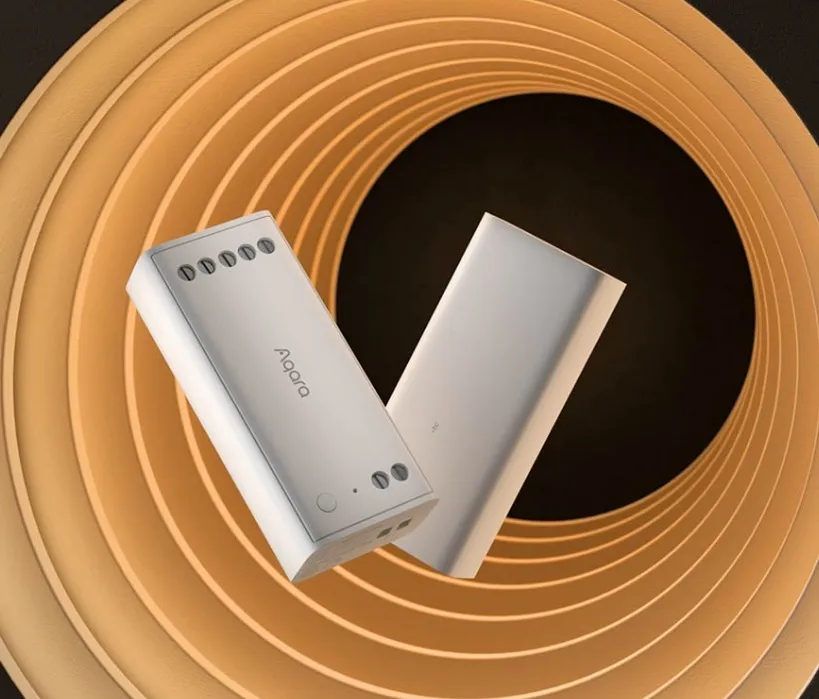

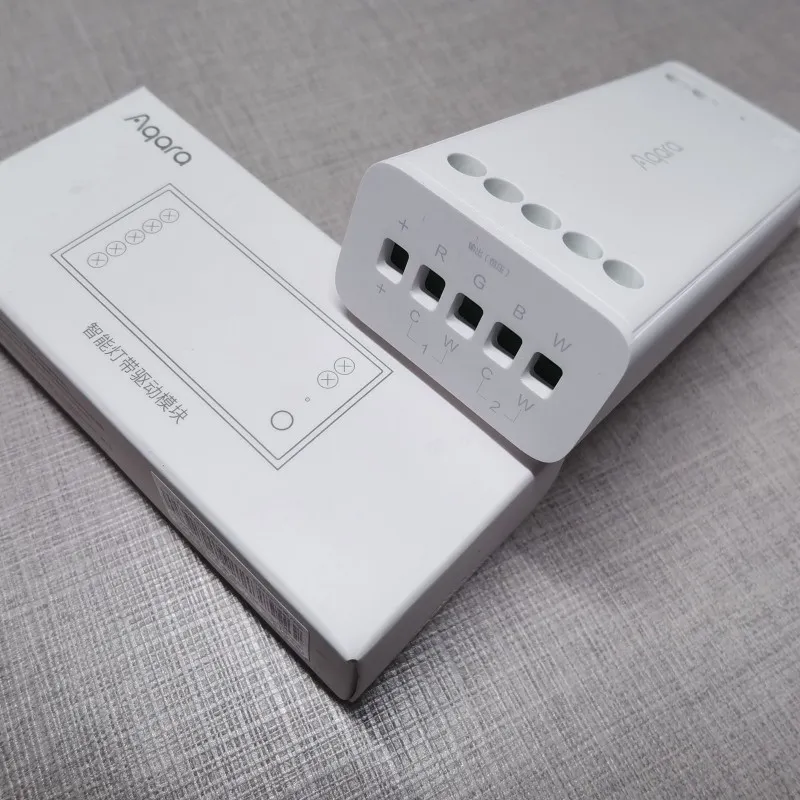

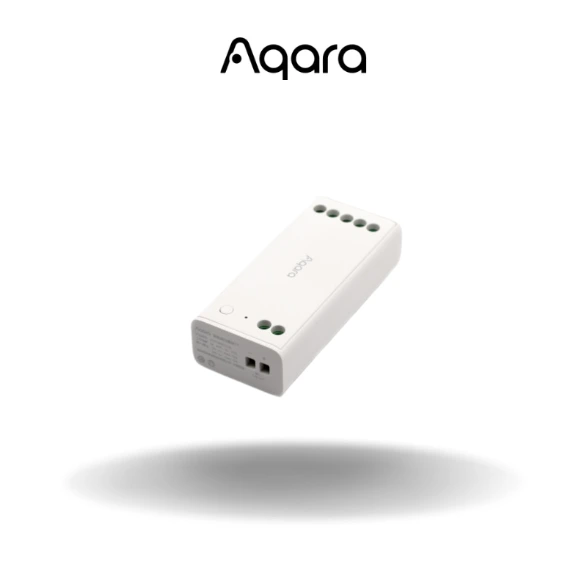

Introducing the Aqara Smart Lightstrip Driver, a smart LED controller designed to transform traditional LED light strips into intelligent lighting solutions. Supporting Zigbee connectivity, the driver enables smart control of compatible LED strips with adjustable brightness, color temperature, and lighting effects through the Aqara Home app and connected smart home platforms. Designed for custom lighting installations, it provides a flexible solution for concealed lighting, decorative illumination, and professional smart home projects.
Key Features:
Smart LED Strip Control
The Aqara Smart Lightstrip Driver allows you to upgrade compatible LED strips into smart lighting systems with control over:
- Power on/off
- Brightness adjustment
- Color temperature adjustment
- Lighting scenes
- Smart automation
Creating personalized lighting experiences for any room.
Zigbee 3.0 Smart Connectivity
The driver uses Zigbee wireless technology to connect with Aqara hubs, enabling remote control, automation, and integration with the Aqara smart home ecosystem.
Supports Multiple LED Strip Types
The Smart Lightstrip Driver supports compatible low-voltage LED strips, including:
- RGBW LED strips
- Tunable White (CCT) LED strips
Allowing flexible lighting designs for residential and commercial applications.
Smooth Dimming & Color Adjustment
Enjoy precise lighting control with smooth brightness transitions and adjustable color settings to create the ideal atmosphere for:
- Relaxation
- Entertainment
- Working environments
- Decorative lighting
Custom Smart Lighting Scenes
Create automated lighting experiences:
- Sunset → Warm ambient lighting
- Movie mode → Dim decorative lighting
- Motion detected → Activate pathway lights
- Sleep mode → Reduce brightness automatically
Compact Installation Design
The compact controller design allows installation behind furniture, inside ceilings, cabinets, and other hidden locations while maintaining a clean interior appearance.
Smart Home Integration
When connected to a compatible Aqara Hub, the driver can integrate with smart home platforms including:
- Apple Home
- Google Home
- Amazon Alexa
- Other supported ecosystems
through Aqara integrations.
Smart Home Automation Examples:
Under Cabinet Lighting
Door sensor opened → Cabinet LED strip turns on → Turns off automatically after leaving.
Movie Mode
Activate scene → LED strip dims → Curtains close → Main lights turn off.
Night Path Lighting
Motion detected → Soft LED lighting turns on → Automatically turns off after inactivity.
Wake Up Scene
Scheduled time → Gradually increase brightness → Create a comfortable morning atmosphere.
Specifications:
Model:
-
ZNDDMK11LM
Connectivity:
-
Zigbee
Wireless Protocol:
-
Zigbee IEEE 802.15.4
Compatible LED Strips:
- RGBW LED strips
-
CCT (Warm White + Cool White) LED strips
Input Voltage:
-
12V DC / 24V DC
Output Voltage:
-
12V DC / 24V DC
Maximum Load:
- Total: 12A
-
Single channel: 6A
Functions:
- Smart LED strip control
- Brightness adjustment
- Color temperature adjustment
- Scene automation
- Remote control
Dimensions:
-
74.5 × 33 × 19 mm
Operating Temperature:
-
-10°C to 50°C
Operating Humidity:
-
0–95% RH (Non-condensing)
Color:
- White
