Introduction:
Introducing the Aqara Wall Outlet H2 EU, a premium smart wall outlet designed to bring intelligent power control, energy monitoring, and advanced safety features to your home. Featuring Zigbee 3.0 connectivity, remote control, real-time energy monitoring, customizable power protection, and seamless integration with major smart home platforms, the Wall Outlet H2 EU transforms ordinary electrical appliances into smart devices. Compatible with standard Type F (Schuko) outlets and 55 × 55 mm wall plates, it offers a clean, modern solution for connected living.
Key Features:
Zigbee 3.0 Connectivity
Uses Zigbee 3.0 for reliable, low-power communication with a compatible Aqara Zigbee Hub, enabling fast response times and stable smart home connectivity.
Remote Control
Turn connected appliances on or off from anywhere using the Aqara Home app when connected to a compatible Aqara Hub.
Real-Time Energy Monitoring
Monitor live and historical power consumption to better understand energy usage, reduce electricity costs, and build intelligent automations based on appliance power draw.
Smart Home Automation
Create intelligent automations such as:
- Turn off devices when everyone leaves home.
- Automatically power on appliances at scheduled times.
- Detect when a washing machine finishes and send a notification.
- Turn on lights when a connected appliance starts.
- Create energy-saving routines based on power consumption.
Voice Control
Control connected devices hands-free using Apple Home, Google Home, Amazon Alexa, or Samsung SmartThings through a compatible Aqara Hub.
Customizable Power Protection
Configure overload protection by setting custom power limits between 100W and 3840W. The outlet automatically disconnects power if the configured threshold is exceeded, helping protect connected devices.
Overheat Protection
Built-in temperature monitoring automatically switches off the outlet if excessive internal temperatures are detected, improving electrical safety.
Charging Protection
Ideal for overnight charging of phones, tablets, and other rechargeable devices. The outlet can automatically cut power when charging is complete by monitoring power consumption.

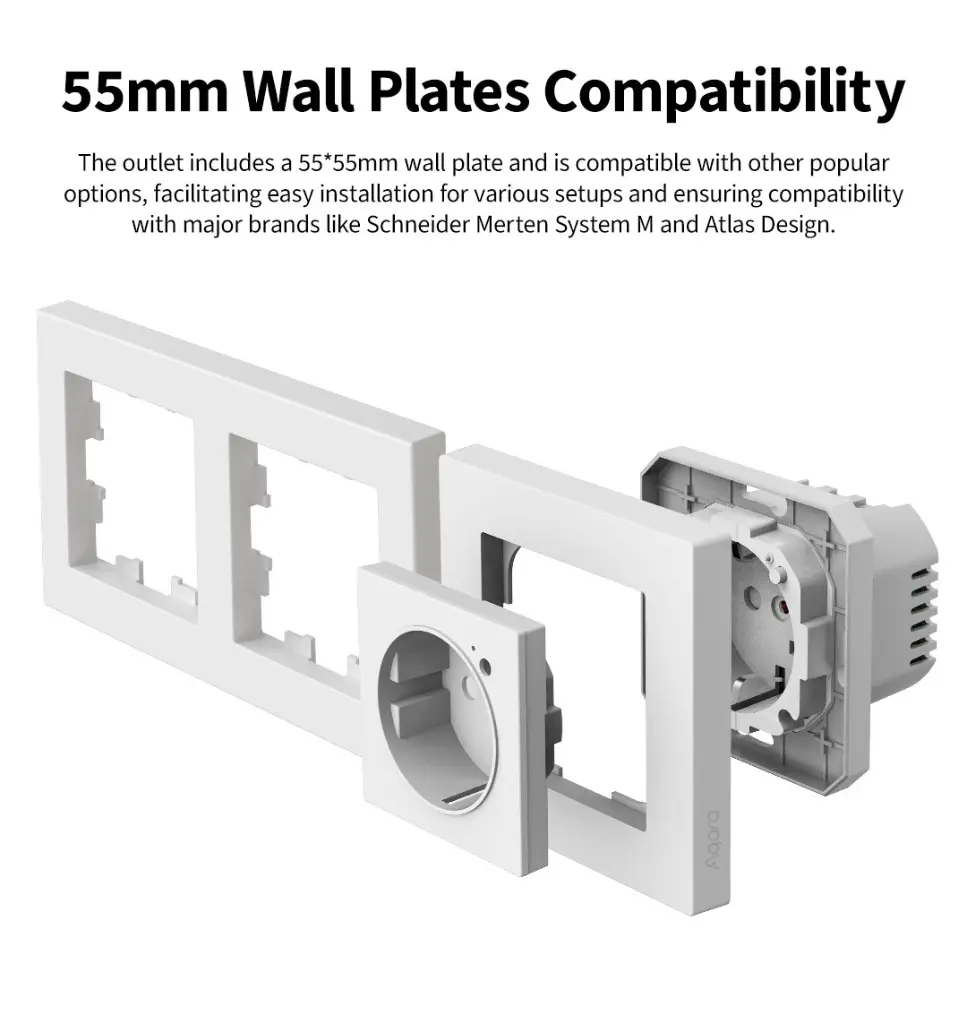

55 × 55 mm Wall Plate Compatibility
Includes a 55 × 55 mm wall plate and is compatible with many popular modular wall plate systems, including Schneider Merten System M and Atlas Design.
OTA Firmware Updates
Supports over-the-air firmware updates through the Aqara Home app to provide new features, security improvements, and enhanced performance.
Specifications:
Model:
- WP-P01D
Outlet Type:
- Type F (Schuko)
Connectivity:
- Zigbee 3.0 (IEEE 802.15.4)
Compatibility:
- Aqara Home
- Apple Home
- Google Home
- Amazon Alexa
- Samsung SmartThings
- Home Assistant
- Homey
- Matter-compatible platforms (via supported Aqara Hub)
Functions:
- Remote control
- Energy monitoring
- Smart automation
- Scheduling
- Countdown timer
- Overload protection
- Overheat protection
- Charging protection
- OTA firmware updates
Electrical Rating:
- 250V AC
- 16A
- 50/60Hz
- Maximum Load: 3680W
Dimensions:
- 86 × 86 × 47.7 mm
Weight:
- Approximately 150 g
Operating Temperature:
- -10°C to 40°C
Operating Humidity:
- 0–95% RH (Non-condensing)
Color:
- White
