Introduction:

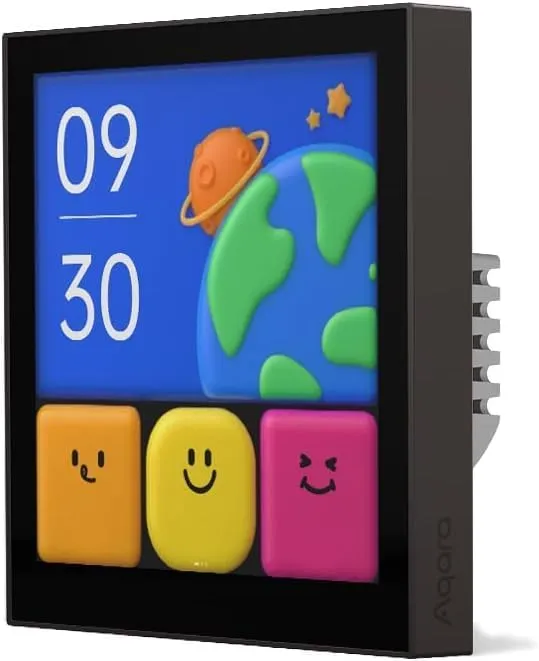

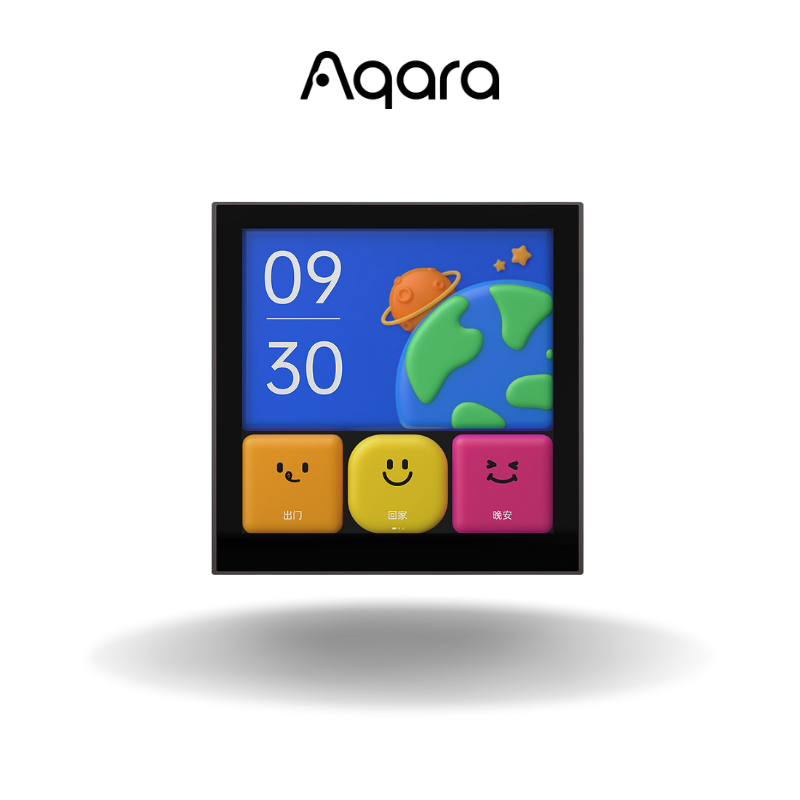

Introducing the Aqara Smart Magic Switch S1E, an intelligent touchscreen wall switch that combines three wired light switches, six customizable wireless scene buttons, and a smart home control panel into one elegant device. Featuring a 2.4-inch full-color touchscreen, Wi-Fi connectivity, customizable themes, energy monitoring, and seamless integration with Apple Home, Google Home, and the Aqara ecosystem, the Magic Switch S1E provides convenient control of your lighting, smart devices, and automations—all from a single wall-mounted interface.
Key Features:
2.4" Full-Color Touchscreen
Features a 480 × 480 high-resolution touchscreen with customizable themes, layouts, and intuitive controls for lights, scenes, and smart devices.
Three Wired Light Switches
Controls up to three wired lighting circuits directly, replacing a traditional multi-gang wall switch while maintaining manual and smart control.
Six Wireless Scene Buttons
Configure up to six virtual wireless buttons to trigger smart scenes, automations, or control other Aqara and compatible smart home devices without additional wiring.
Wi-Fi Connectivity
Connects directly to your 2.4GHz Wi-Fi network without requiring a Zigbee connection, providing fast setup and reliable operation.
Smart Home Dashboard
Quickly control:
- Lights
- Curtains
- Smart Plugs
- Switches
- Scenes
- Sensors
- Cameras (compatible models)
- Other Aqara smart devices
from a single touchscreen interface.
Energy Monitoring
Displays electricity consumption for connected lighting circuits, helping monitor and manage household energy usage.

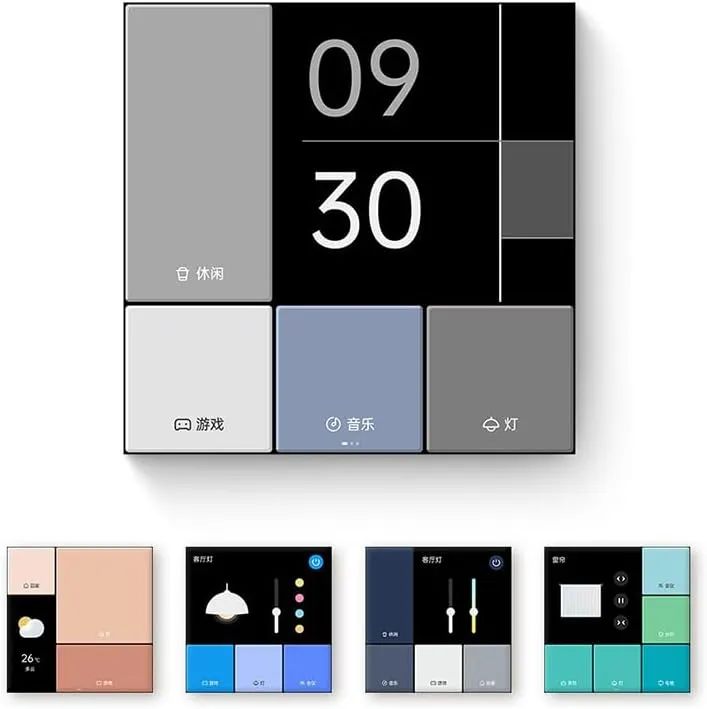

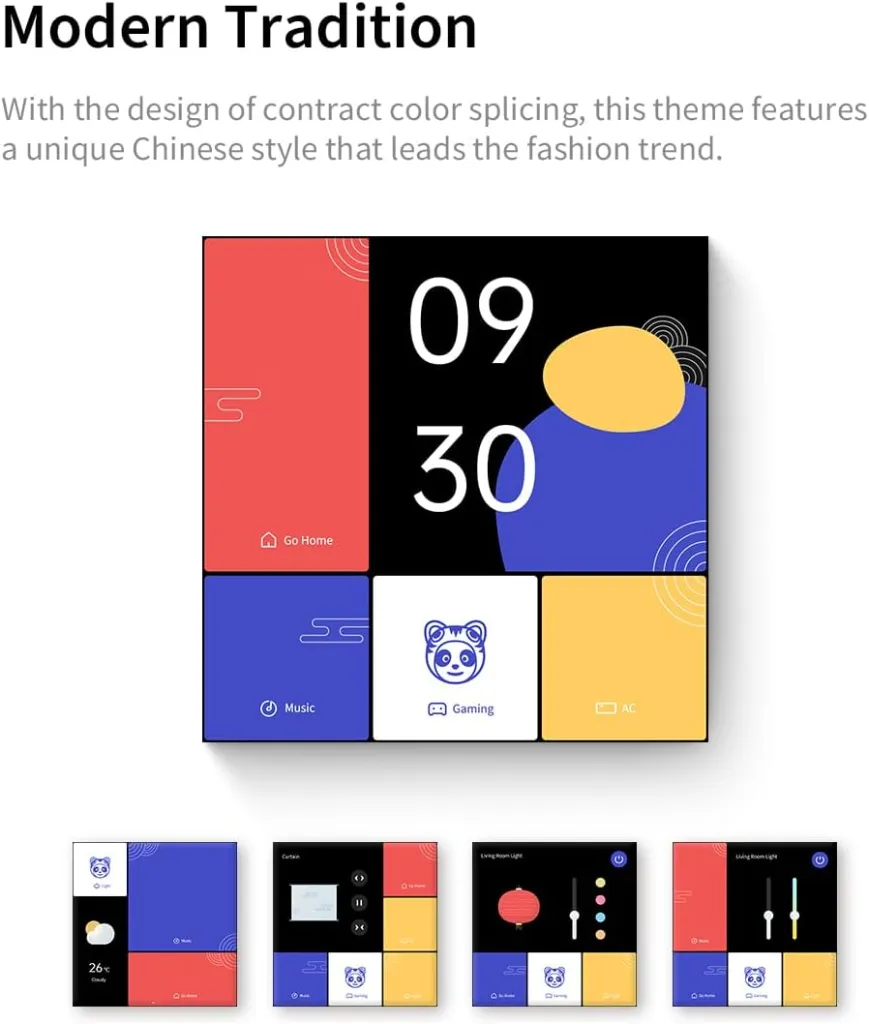

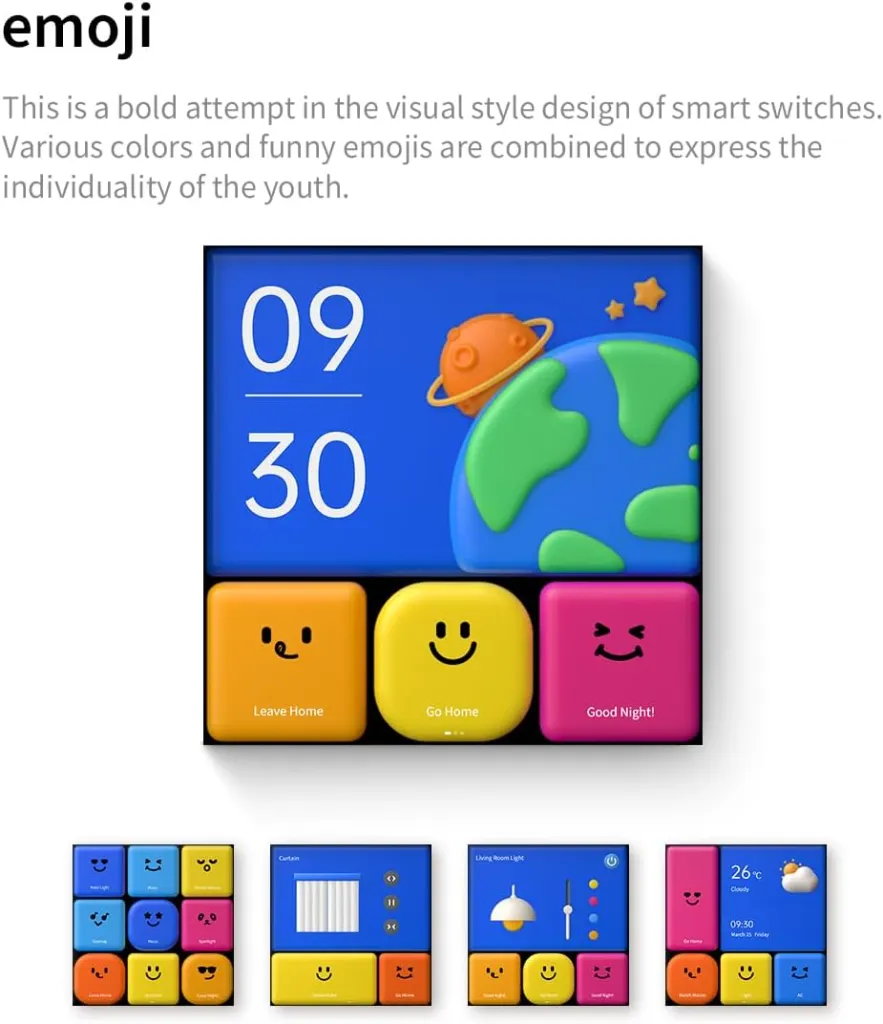

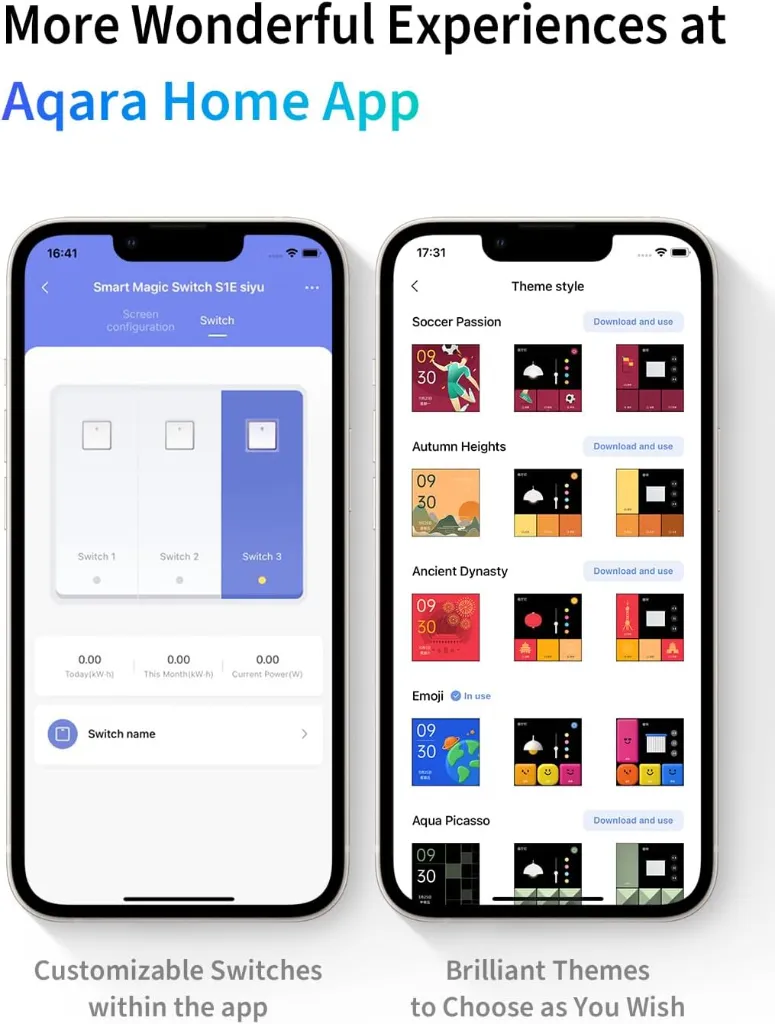

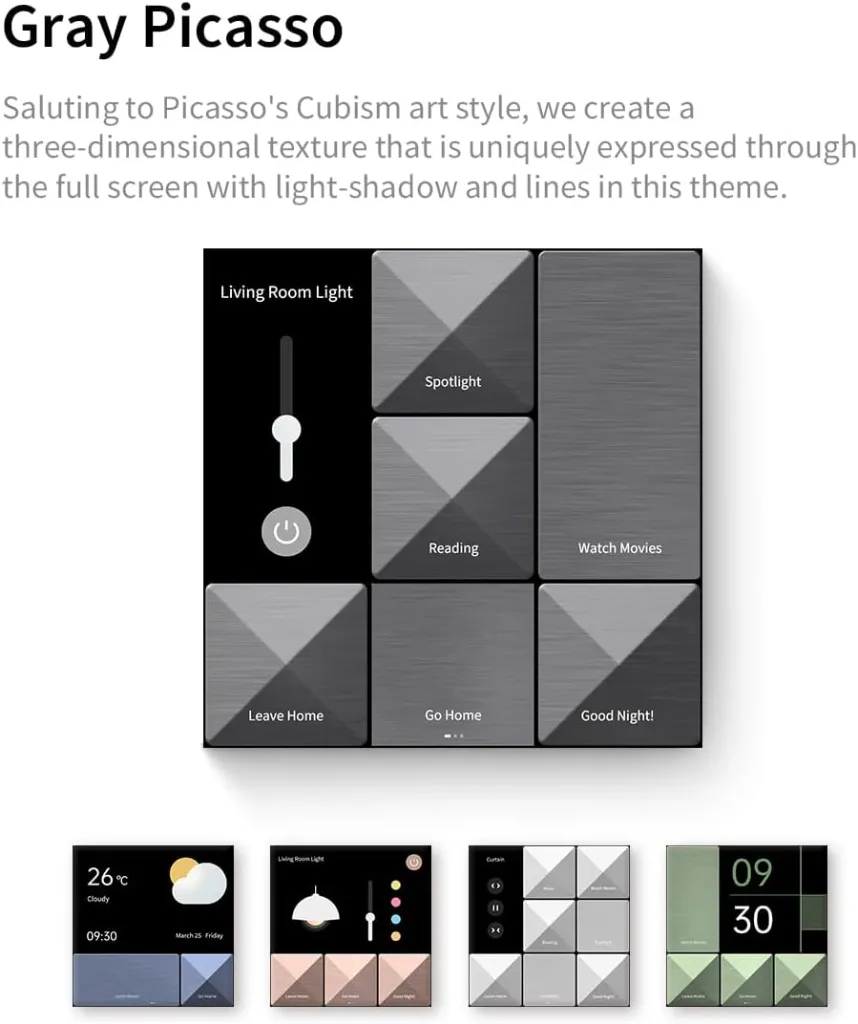

Customizable Interface
Personalize wallpapers, themes, page layouts, and shortcut buttons to match your home's style and daily routines.
Smart Home Automation
Create intelligent automations such as:
- Activate Movie Mode to dim lights and close curtains.
- Turn off all lights when leaving home.
- Trigger bedtime scenes with one touch.
- Open curtains and turn on lights every morning.
- Control multiple devices using a single virtual scene button.
Voice Control
Compatible with Apple Home, Google Home, and Amazon Alexa for convenient hands-free control of connected devices.
OTA Firmware Updates
Supports over-the-air firmware updates through the Aqara Home app for ongoing improvements and new features.
Specifications:
Model:
- MS-K01D
Display:
- 2.4-inch Touchscreen
- Resolution: 480 × 480
Connectivity:
- Wi-Fi IEEE 802.11 b/g/n (2.4GHz)
Compatibility:
- Aqara Home
- Apple HomeKit
- Google Home
- Amazon Alexa
Functions:
- Three wired light controls
- Six wireless scene buttons
- Energy monitoring
- Smart home dashboard
- Scene control
- Remote control
- Voice control
- OTA firmware updates
Rated Input:
- 220–240V AC
- 50/60Hz
Maximum Load:
- Incandescent Lamps: 2200W (Total)
- LED / CFL / ESL: 400W (Total)
Dimensions:
- 86 × 86 × 41.35 mm
Operating Temperature:
- -10°C to 40°C
Operating Humidity:
- 0–95% RH (Non-condensing)
Color:
- Gray
