Introduction:

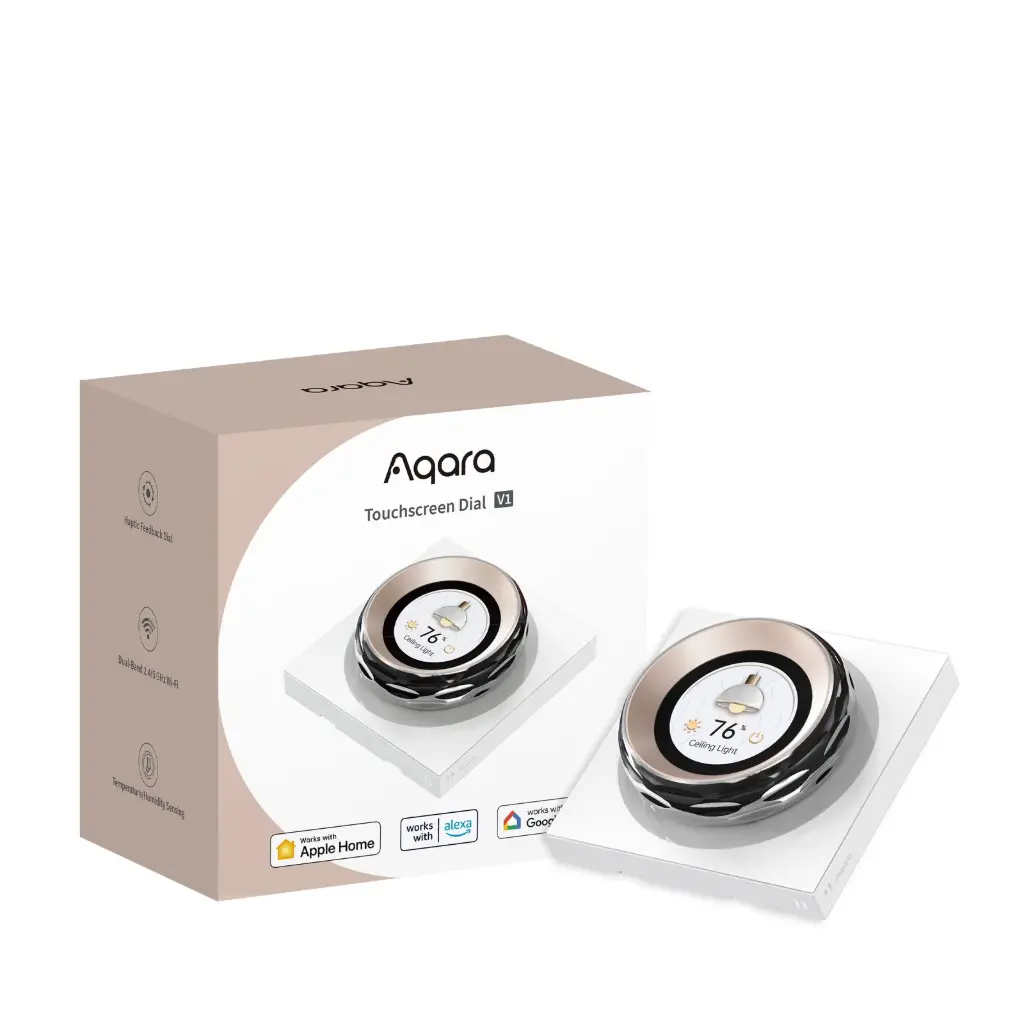

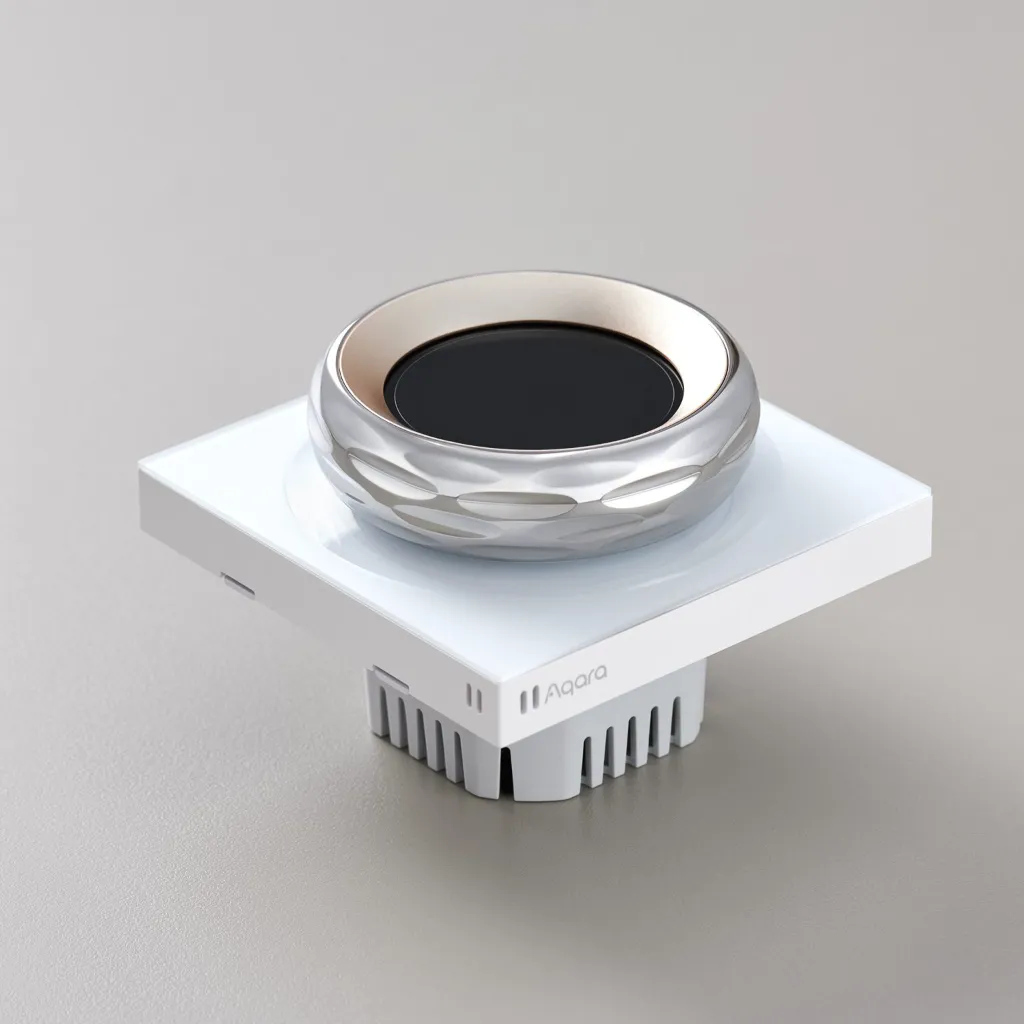

Introducing the Aqara Touchscreen Dial V1, a premium smart wall controller engineered to provide intuitive control of your entire smart home from a single elegant interface. Combining a 1.32-inch round touchscreen, a precision rotary dial with haptic feedback, and Wi-Fi, Zigbee, and Bluetooth connectivity, the Touchscreen Dial V1 allows you to control lighting, curtains, thermostats, switches, scenes, and other smart devices with exceptional precision. Featuring built-in environmental sensors, customizable interfaces, and seamless integration with leading smart home platforms, it delivers an intelligent and interactive smart home experience.
Key Features:

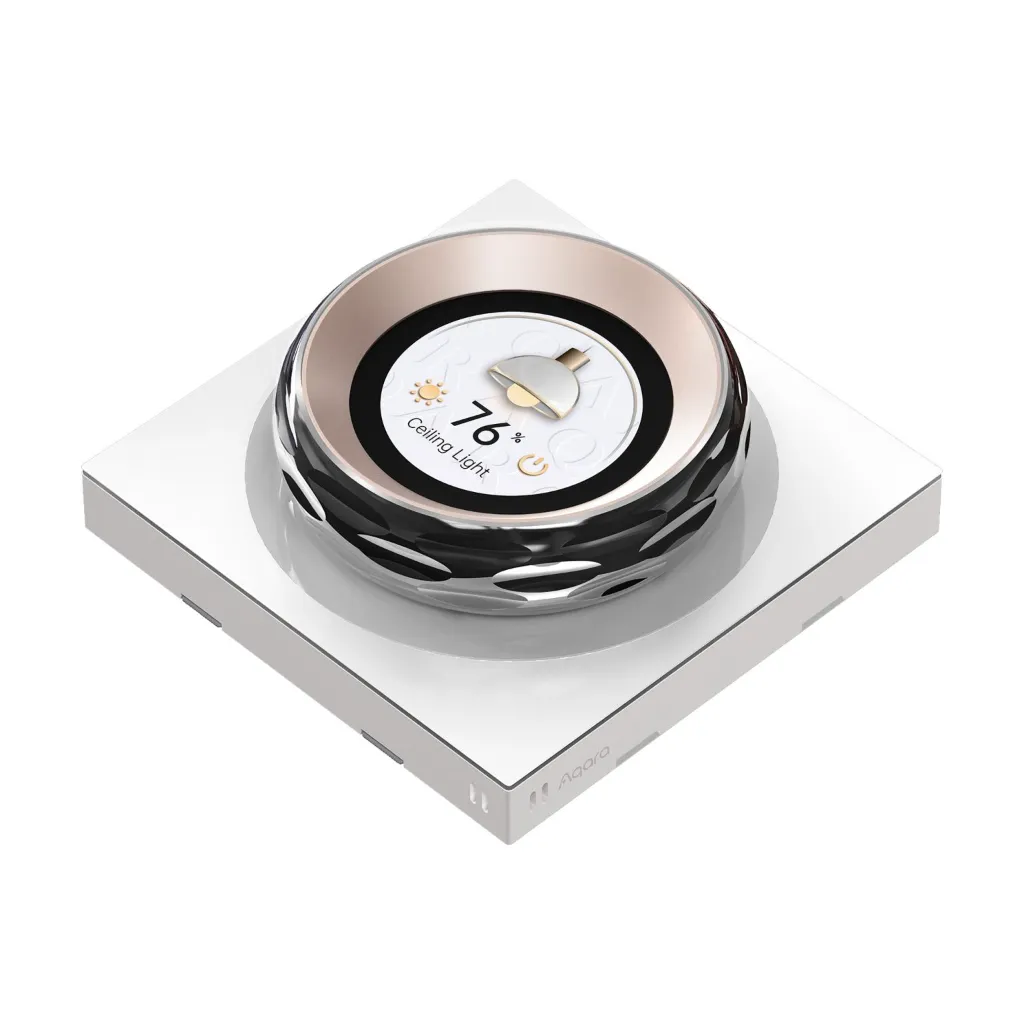

1.32-Inch Round Touchscreen
Features a vibrant 1.32-inch circular touchscreen that provides an intuitive interface for controlling smart devices, adjusting settings, and launching automations with a simple tap or swipe.
Precision Rotary Dial with Haptic Feedback
The premium rotary dial provides smooth, precise control with vibration feedback, making it easy to adjust brightness, temperature, curtain position, volume, and other compatible smart home functions.
Triple Wireless Connectivity
Built-in Wi-Fi (2.4GHz & 5GHz), Zigbee 3.0, and Bluetooth provide flexible connectivity for smart home control and seamless integration with Aqara devices and compatible ecosystems.

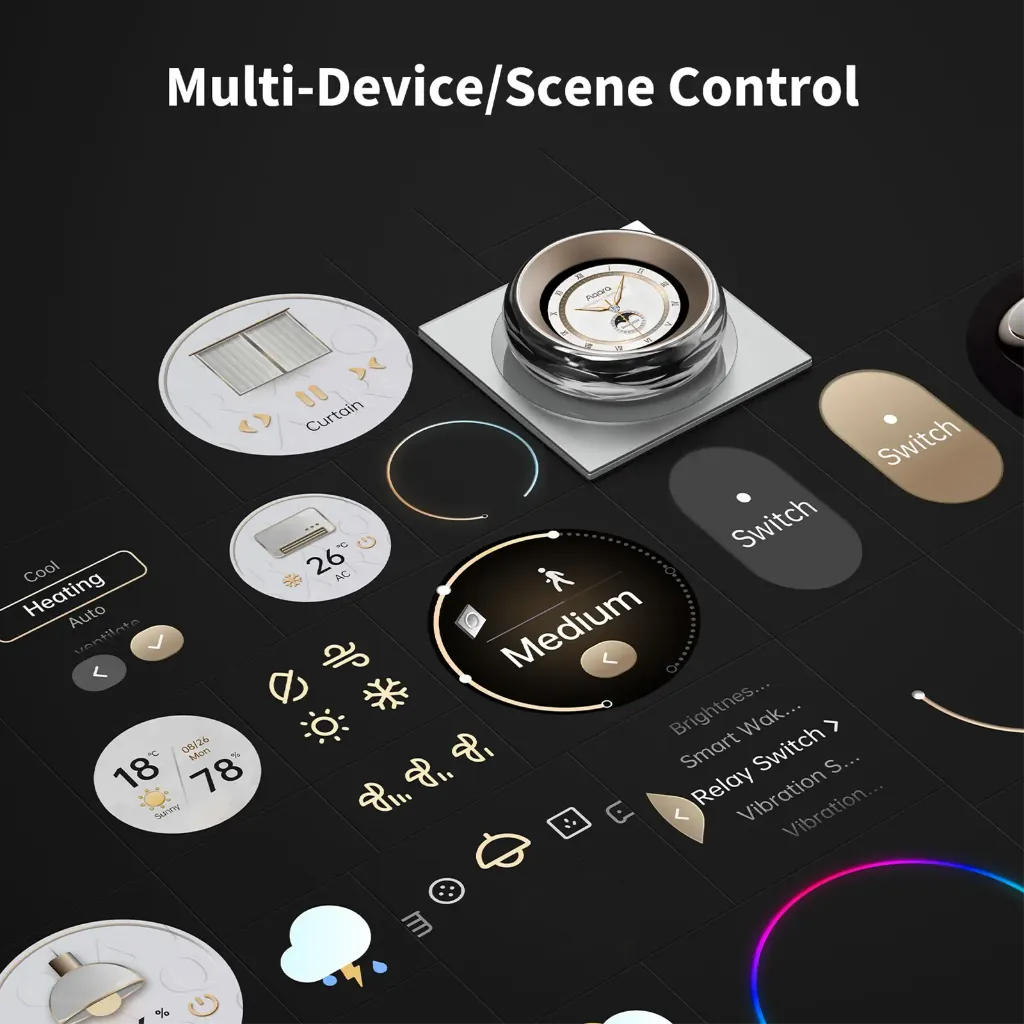

Multi-Device Control
Control compatible smart lights, curtains, switches, thermostats, plugs, and automation scenes directly from the touchscreen without reaching for your smartphone.
Customizable Interface
Personalize the display with custom wallpapers, clock styles, weather information, temperature and humidity data, and favorite device shortcuts for a tailored smart home experience.
Built-in Presence Sensor
An integrated presence sensor automatically wakes the display as you approach, providing instant access while reducing unnecessary power consumption.
Built-in Temperature & Humidity Sensor
Continuously monitors indoor environmental conditions, allowing the Dial V1 to display real-time readings and trigger climate-based automations.
Smart Home Automation
Create personalized automations such as adjusting lighting based on time of day, controlling curtains with a simple dial rotation, activating "Movie Mode," or managing your home's climate with a single touch.
Remote Control
Monitor and manage compatible Aqara devices remotely using the Aqara Home app, providing convenient control whether you're at home or away.
OTA Firmware Updates
Receive firmware improvements and future feature enhancements through over-the-air updates via the Aqara Home app.
Specifications:
Model:
- DS-K01D
Connectivity:
- Wi-Fi IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
- Zigbee IEEE 802.15.4
- Bluetooth
Display:
- 1.32-inch Round Touchscreen
- Rotary Dial with Haptic Feedback
Compatibility:
- Aqara Home
- Apple Home
- Google Home
- Amazon Alexa
- Home Assistant
Functions:
- Smart device control
- Rotary adjustment
- Smart scene activation
- Lighting control
- Curtain control
- Thermostat control
- Environmental monitoring
- Presence detection
- Remote control
- OTA firmware updates
Electrical Rating:
- 200–240V AC
- 50/60Hz
- Max. 8A (Resistive Load)
Dimensions:
- 86 × 86 × 62.1 mm
Weight:
- Approximately 369 g
Operating Temperature:
- -10°C to 40°C
Operating Humidity:
- 0–95% RH (Non-condensing)
